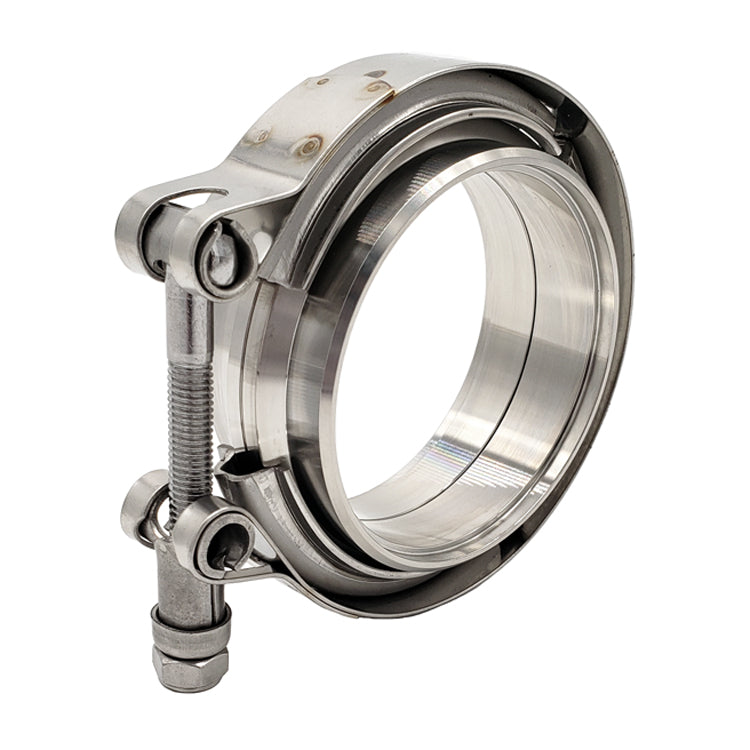

304 STAINLESS V-BAND ASSEMBLY — LEAK-FREE INTERLOCKING FLANGE DESIGN
The Ace Race Parts brand of Stainless Steel V-Band Assemblies features a 304 Stainless V-Band Clamp and a set of "Male/Female" interlocking V-Band Flanges, which are precision CNC machined from solid 304 Stainless round bar. Our V-Band Clamps, Flanges, and full Assemblies are suitable for fabricating exhaust systems, downpipes, merge collectors, and other custom or replacement components.
Our V-Band Flanges utilize an interlocking flange design that ensures a leak-free seal without the need for a gasket and features a counterbore on the weld side of the flange that allows the matching tube size material to slip into the flange. The counterbore is machined to a width of 0.065" and aligns with the inside diameter (ID) of matching tube size material — preventing any unnecessary reductions or restrictions in the flow of exhaust gases.
FEATURES:
- Precision CNC Machined 304 Stainless
- Male/Female Interlocking Flange Design
- Creates an Air-Tight Seal — No Gasket Required
- Flanges are Counterbored to Matching Tube Size
- Suitable for Downpipes, Exhausts, Merge Collectors, and more!
V-BAND ASSEMBLY INCLUDES:
- (1) SKU 22018 - V-Band Clamp, Standard T-Bolt Style, 304 Stainless

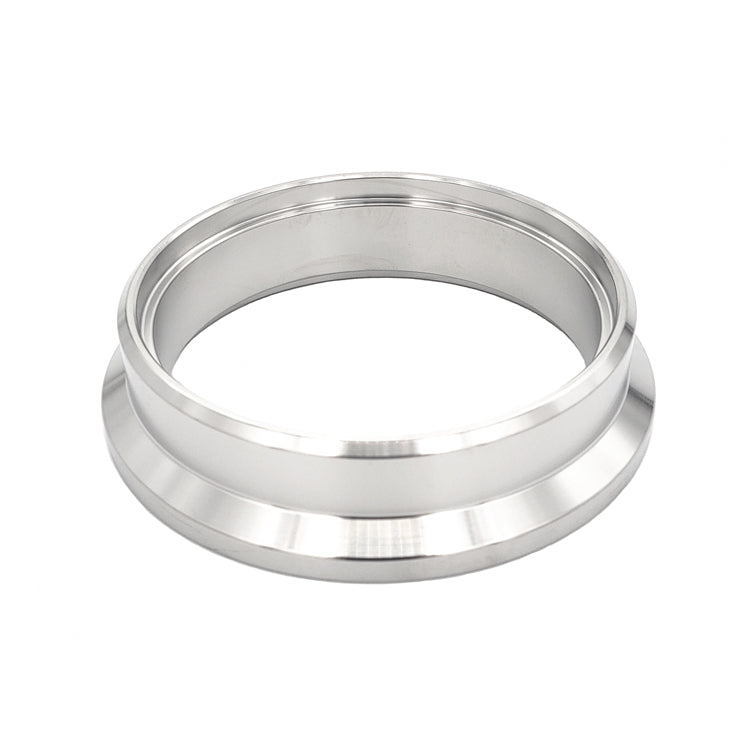

- (1) SKU 22033 - "Male" Interlocking V-Band Flange, 304 Stainless

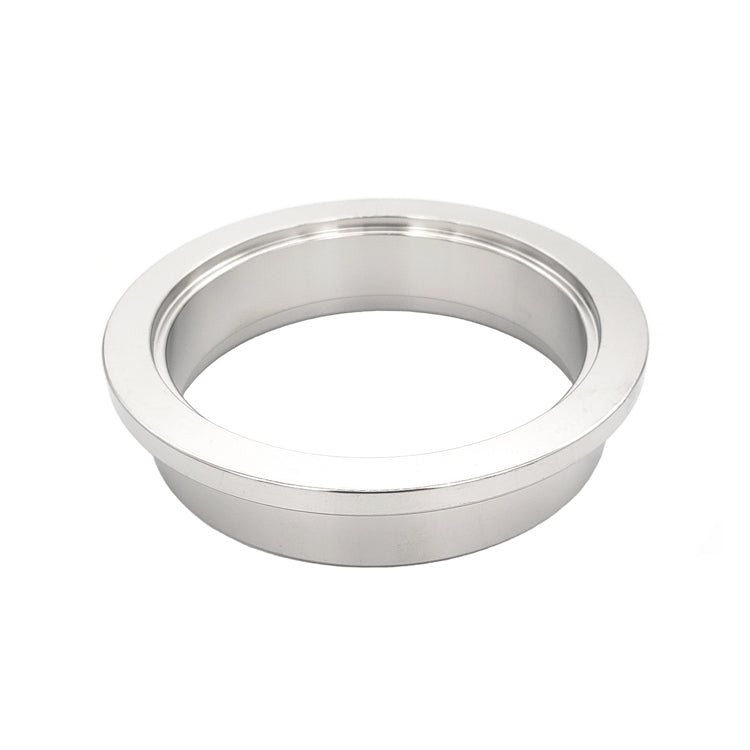

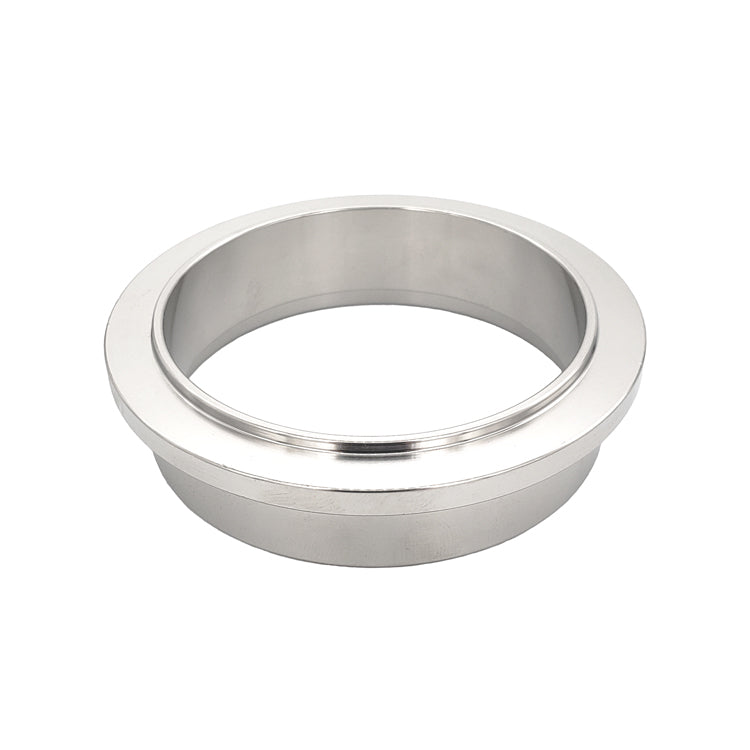

- (1) SKU 22049 - "Female" Interlocking V-Band Flange, 304 Stainless
-
Matching Tube Size: 1.500"
- Overall Flange OD: 2.083"
- Flange Apex Width: 0.170"
- Flange Base Width: 0.287"
-
Clamp Type: V-Band, Standard T-Bolt
- Fastener Size: 1/4"-28
- Removable T-Bolt: No
- Fastener Torque Specs: Dry: 10-14 Ft/Lbs | Lubed: 7.2-10 Ft/Lbs
Compatibility Disclaimer: Due to flange dimension differences, "Standard" style and "Quick Release" style V-Band Clamps and Flanges are NOT cross-compatible. Ace Race Parts / K2 Fabrication is NOT responsible if incompatible V-Band components are ordered. We do not offer any compatibility guarantee with any other brand of V-Band components.
