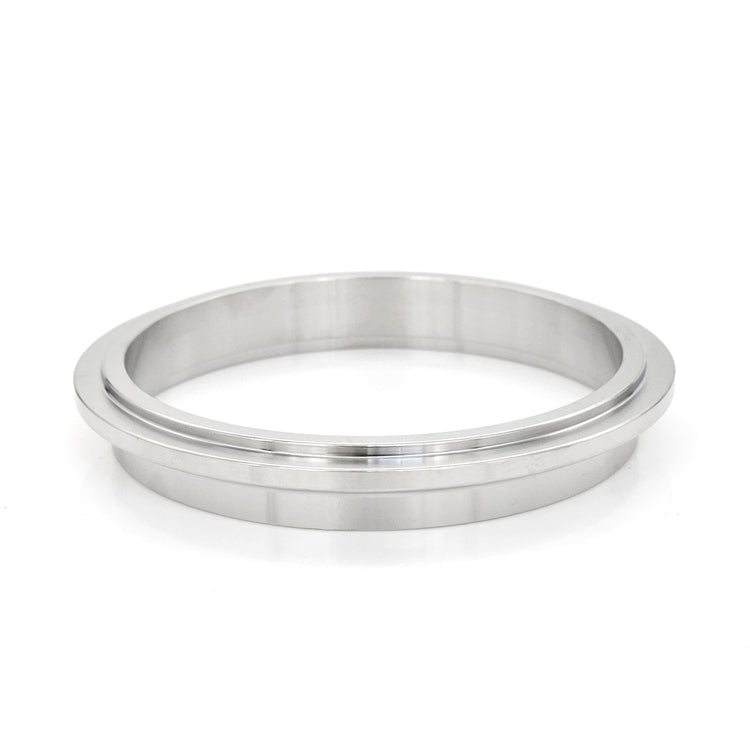

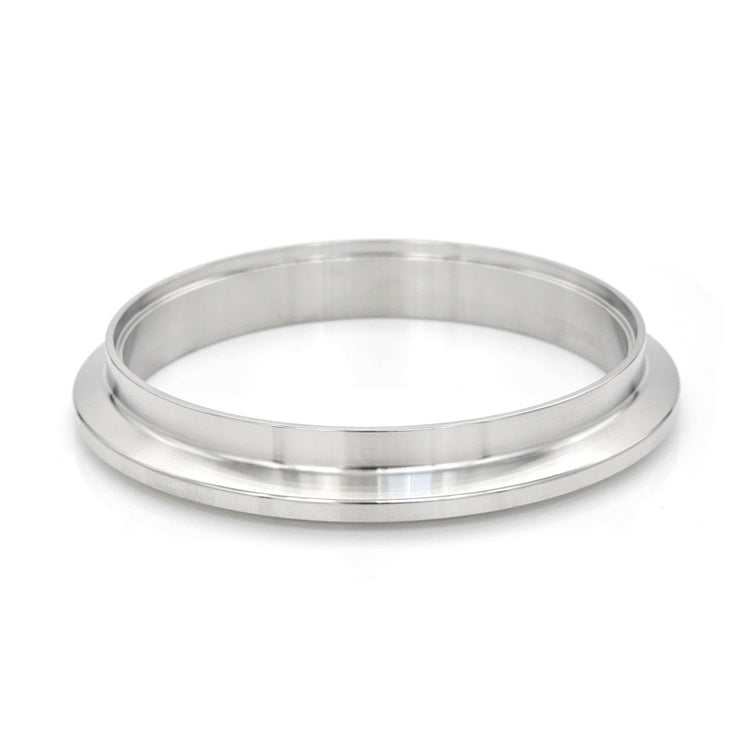

The Ace Race Parts brand of Turbo Outlet Flanges is precision CNC machined from solid 304 Stainless round bar and will withstand the punishment of high temperature turbo applications. Our version of this particular Garrett Turbo Outlet Flange features a 3.000" ID Counterbore and is compatible with a variety of Garrett brand turbochargers (please see the "Compatibility" list provided below). For dimensional details, please view the "Dimensions" table provided below.
FEATURES
- Precision CNC Machined
- 304 Stainless Steel
COMPATIBILITY
-
TURBO OUTLET:
- G25-550, G25-660
- G30-660, G30-770, G30-900
- G35-900, G35-1050
- G25/G30/G35 Standard & Reverse Rotation Turbine Kits
- GTX2967R, GTX2971R (V-Band)
- GTX3071R Gen.2, GTX3076R Gen.2, GTEX3576R Gen.2, GTX3582R Gen.2, GTX3584RS
- GT30/GT35 Turbine Kits (V-Band)
- Turbonetics (T6 Turbine only)
-

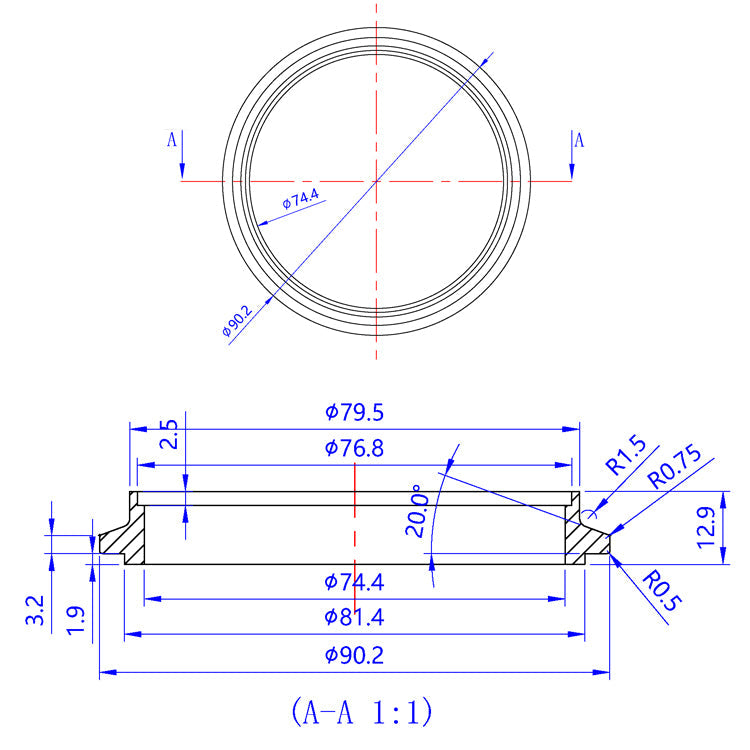

Counterbore ID: 3.023" (76.8mm)
- Flange ID: 2.929" (74.4mm)
- Overall Flange OD: 3.551" (90.2mm)
