TRUSTED BY THE INDUSTRY'S TOP FABRICATORS AND MANUFACTURERS!

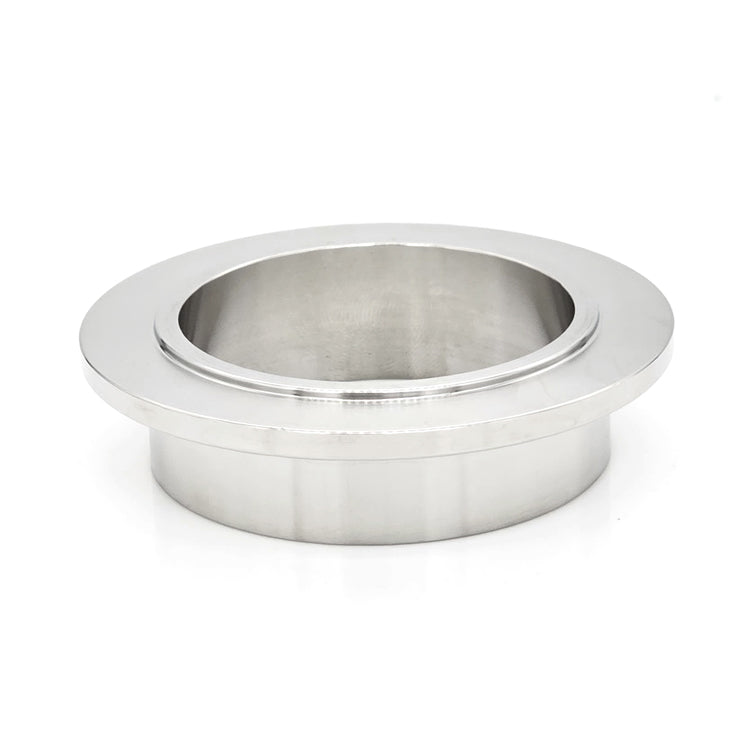

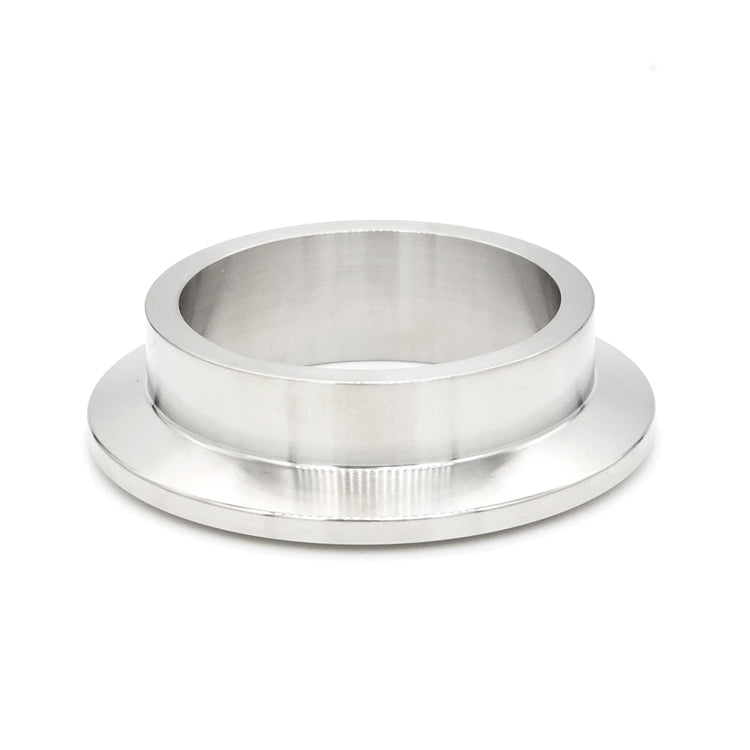

The Ace Race Parts brand of Turbo V-Band Inlet Flanges is precision CNC machined from solid 304 Stainless bar stock and offers durability in the most extreme conditions. Our version of this particular Precision Turbo (PTE) Inlet Flange is compatible with a variety of Precision Turbo brand medium frame turbo housings (please see the "Compatibility" list provided below). For dimensional details, please view the "Dimensions" table provided below.
FEATURES
- Precision CNC Machined
- 304 Stainless Steel
- For use with PTE brand Turbochargers
COMPATIBILITY
-
Turbo Inlet: Precision Turbo (PTE) CAE 5 series and 6 series
-

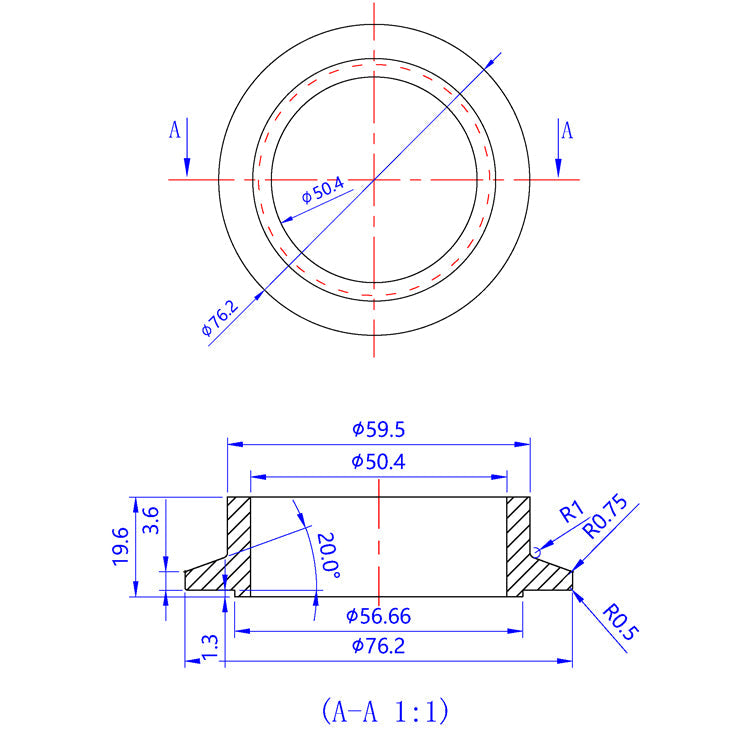

Flange OD (Weld Side): 2.342" (59.5mm)
- Flange ID: 1.984" (50.4mm)
- Overall Flange OD: 3.000" (76.2mm)
- Compatible V-Band Clamp: SKU 22121
