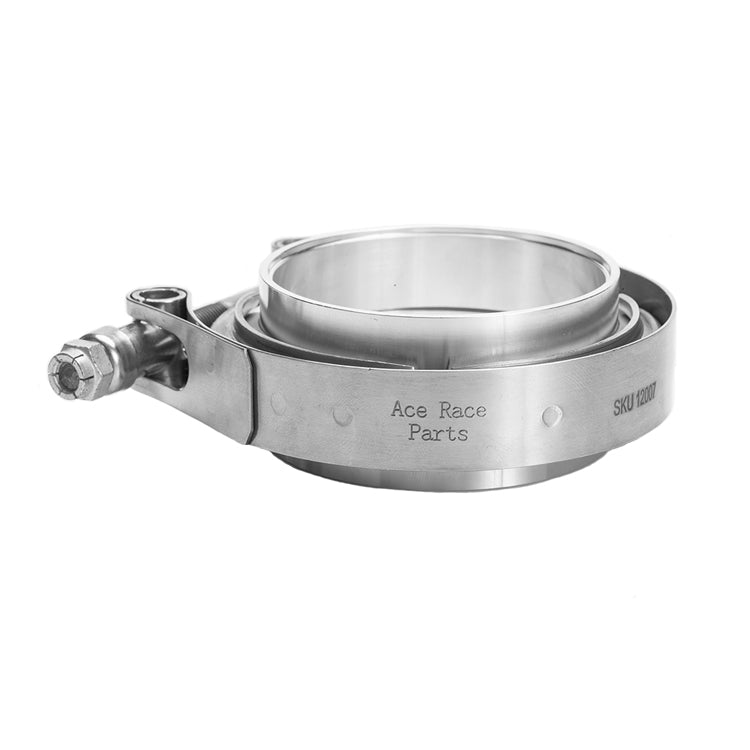

Our Aluminum/Stainless Combination V-Band Assemblies are precision CNC machined and feature a 304 Stainless V-Band Clamp, a "Male + O-Ring" style Aluminum V-Band Flange and a "Female" style 304 Stainless V-Band Flange.
The seating surface (the area where the two flanges meet) of our "Male + O-Ring" Aluminum V-Band Flange and "Female" 304 Stainless V-Band Flange utilizes an interlocking flange design to create an air-tight, leak free seal. In extremely high temperature applications, where a Buna O-Ring will not be suitable, the interlocking style flange design allows for a leak free seal without the use of the O-Ring. The weld side of our Aluminum/Stainless V-Band Flanges are CNC machined with a counterbore to allow the matching tube size material to slip into the V-Band Flange and be welded in place. The V-Band Flange counterbore is machined to be 0.065" wide and allows for the inside diameter (ID) of 16 gauge wall thickness tube to align perfectly with the ID of the V-Band Flange without any restrictions or reductions.
FEATURES:
- Combines two different material types in a single clamp
- 304 Stainless V-Band Clamp
- 6061 Aluminum Male + O-Ring V-Band Flange
- 304 Stainless Female Flange
- High Temperature O-Ring
- Counterbored to fit matching tube size
- Suitable for a wide range of uses, including automotive, diesel, and industrial applications
V-BAND ASSEMBLY INCLUDES:
- (1) SKU 12022 - 304 Stainless Steel V-Band Clamp
- (1) SKU 12055 - Aluminum "Male + O-Ring" V-Band Flange
- (1) SKU 22154 - 304 Stainless "Female" V-Band Flange
-
Matching Tube Size: 2.500"
- Overall Flange OD: 3.237"
- Flange Apex Width: 0.137"
- Flange Base Width: 0.210"
-
Clamp Type: V-Band, Standard T-Bolt
- Fastener Size: 1/4"-28
- Removable T-Bolt: No
- Fastener Torque Specs: Dry: 10-14 Ft/Lbs | Lubed: 7.2-10 Ft/Lbs
REPLACEMENT PARTS:
- SKU 12045 - Black Rubber O-Ring
- SKU 12045-G - Green Fluororubber (FKM) O-Ring
Compatibility Disclaimer: Due to flange dimension differences, "Standard" style and "Quick Release" style V-Band Clamps and Flanges are NOT cross-compatible. Ace Race Parts / K2 Fabrication is NOT responsible if incompatible V-Band components are ordered. We do not offer any compatibility guarantee with any other brand of V-Band components.
